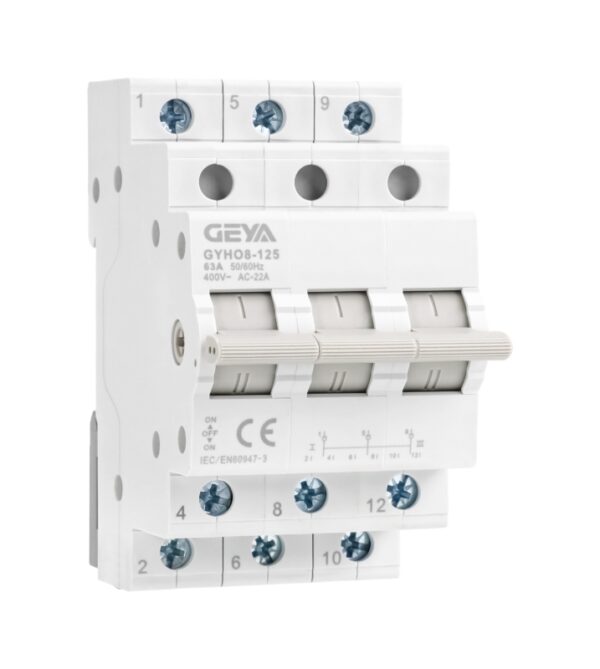

GEYA Changeover Breaker GYHO8-1P/2P/3P/4P

GEYA Changeover Breaker GYHO8-1P/2P/3P/4P

$2.00 – $8.00

ConformstoIS/IEC:60947-3

Choice of Two Pole&Four Pole versions

Front operation with three stable positions I-0-II

Off at middle position

DIN Rail Mounting facility

SKU: 261,262,263,264 Categories: , ,

Specifications

Rated Voltage  240/415V~
Rated Current 16,25,32,40,63,80A
Rated Frequency 50/60Hz
Number of Poles 1,2,3,4P
Contact form I-0-II
Electrical Life 1500 Cycles
Mechanical Life 10000 Cycles
Protection degree  IP20
Ambient Temperature -5°Cto40°C
Terminal/Cable size  25mm^2
Installation Mounting on 35mm DIN rail

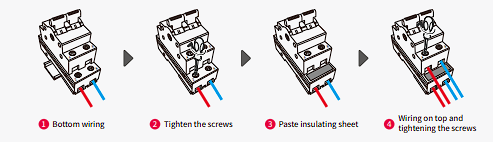

Connection

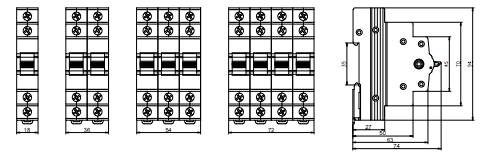

Overall Dimensions

Number of Poles

1P, 2P, 3P, 4P
